T型槽彎板2000X6000米現貨訂做
時間：2015/12/19 13:18:00
瀏覽量：359

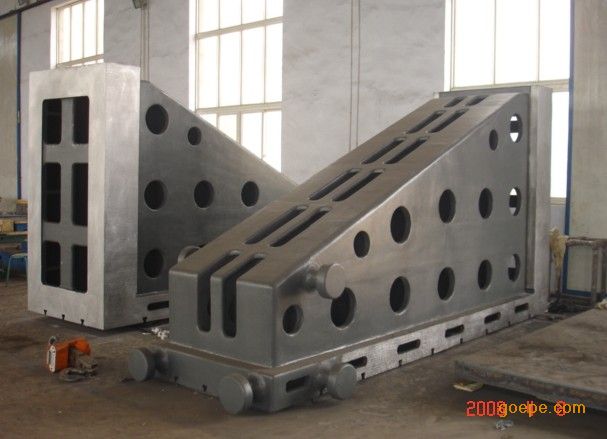

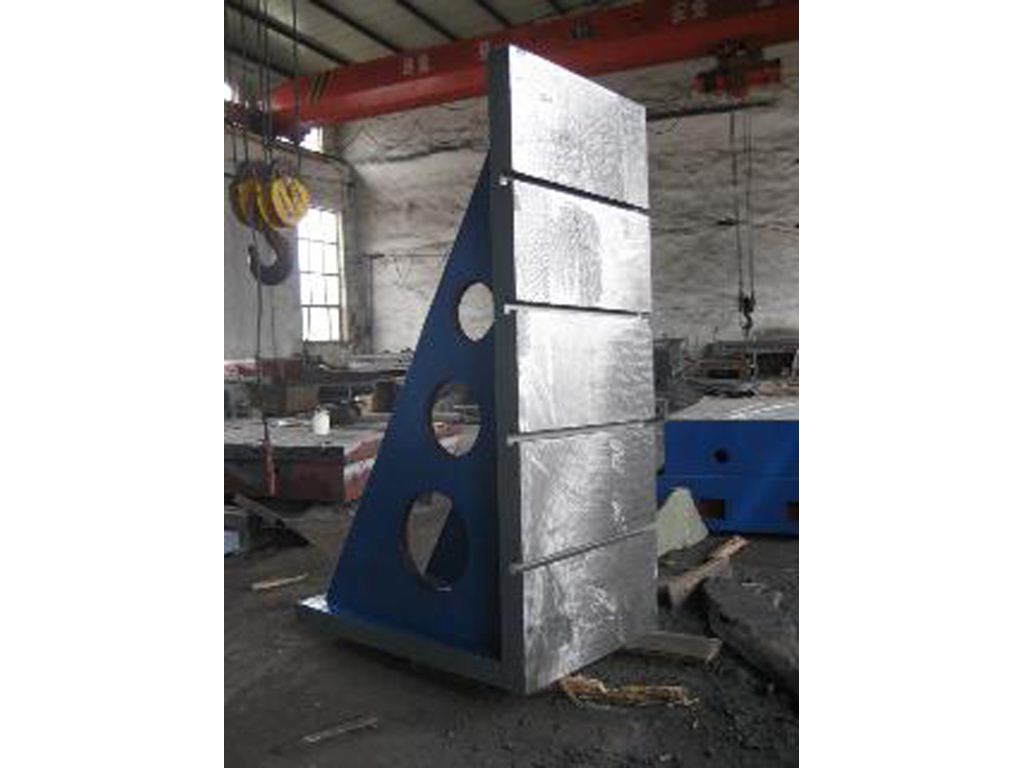

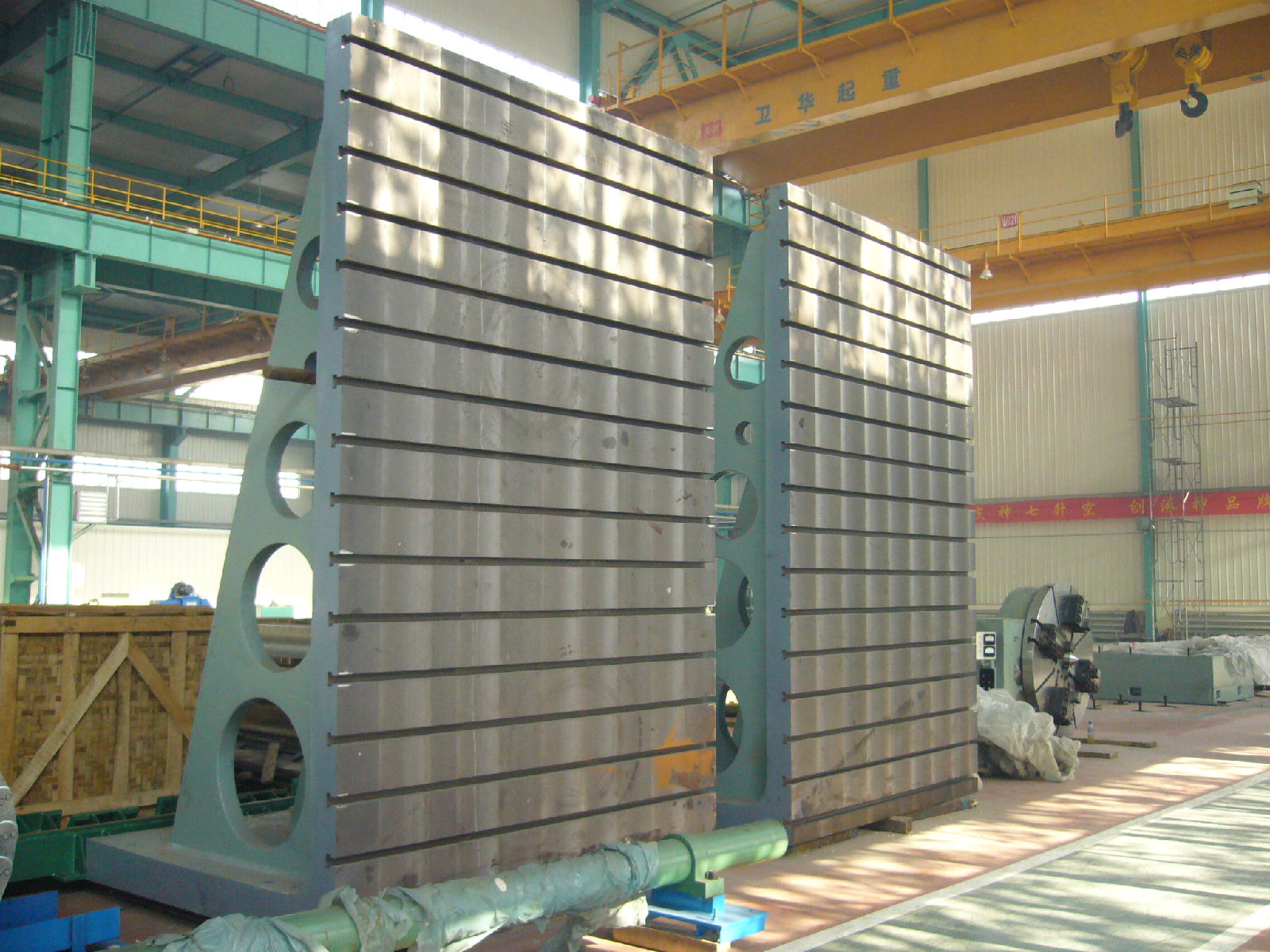

T型槽彎板適用于機床機械垂直面的檢驗、安裝、檢查，并能在平板上檢查工件的垂直度；還適用于高精度機械和儀器檢驗和機床之間不垂直度的檢查,T型槽彎板維修設備時檢驗零部件相關表面的相互垂直度，還常用于鉗工劃線。
T型槽彎板不要在潮濕、有腐蝕、過高和過低的溫度環境下使用和存放，在確認沒有問題的情況下才能使用。
T型槽彎板精度：可以分為000級、00級、0級、1級、2級、3級。選用精度標準時一般根據使用情況酌情而定。3級精度以上的彎板用做檢驗、劃線、裝配等使用，4級精度以下的彎板一般用做鉚焊等使用。材質為高強度鑄鐵HT200-300，工作面硬度為HB170-240，經過兩次人工退火600度-700度和自然時效2-3年，精度更穩定，耐磨性能良。
T型槽彎板規格主要有：200mm×300mm-2000mm×4000mm，我們可以根據客戶不同需求訂做不同規格的彎板。
T型槽彎板訂做廠家，您就咨詢泊頭市卓遠機械設備制造有限公司的好
T型槽彎板，鑄鐵平臺，方箱訂購咨詢：
傳真號碼：0317-8031093
聯系方式：(河北)15369812793 褚連勝
T-slot curved plate is suitable for inspection, installation and inspection of machine tool vertical surface, and can check the verticality of workpiece on flat plate. It is also suitable for high-precision mechanical and instrument inspection and non-perpendicular inspection between machine tools, T type. When the grooved plate repairs the equipment, it checks the mutual perpendicularity of the relevant surface of the component, and is also often used for the scribe line.
T-slot curved plates should not be used and stored in humid, corrosive, excessively high and low temperature environments, and can be used without any problems.
T-slot bending plate accuracy: can be divided into 000, 00, 0, 1, 2, 3. The selection of the accuracy standard is generally based on the use of the situation. Bending plates with a precision of 3 or more are used for inspection, scribing, assembly, etc., and bent plates with a precision of 4 or less are generally used for riveting and the like. The material is high-strength cast iron HT200-300, the working surface hardness is HB170-240. After two artificial annealings of 600-700 degrees and natural aging for 2-3 years, the precision is more stable and the wear resistance is good.
