T型槽平板，大連，規格
時間：2015/12/20 15:02:48
瀏覽量：415
T型槽平板，大連，規格
大連T型槽平臺，訂購咨詢
公司：泊頭市卓遠機械設備制造有限公司
傳真號碼：0317-8031093
聯系方式：(河北)15369812793 褚連勝

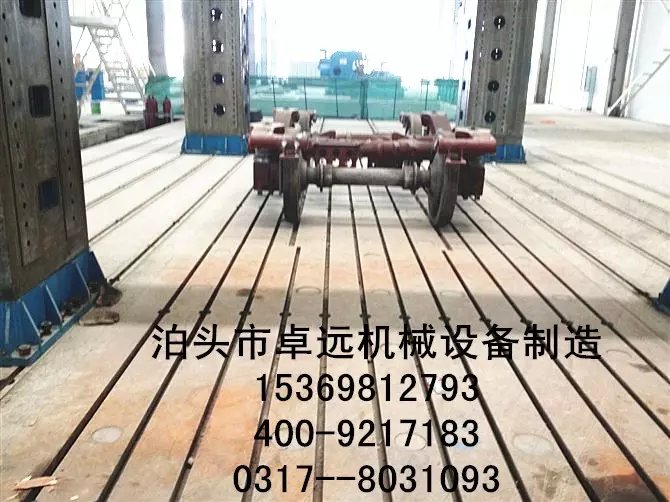

T型槽平臺具有精度穩定，耐磨性能好，適用于各種檢驗工作、精密測量用的基準平面，常常用于機床機械檢驗測量基準，檢查零件的尺寸精度或形位偏差，并作緊密劃線。在機械制造中T也是不可缺少的基本工具。
平臺表面帶有T型槽是用于固定被測工件，使之測量準確。
T型槽平板平臺的材質一般為灰口鑄鐵HT200-300，也可定做球墨鑄鐵、鑄鋼等材質，板工作面硬度為HB170-240，采取傳統退火時效處理（600度-650度，恒溫4-6小時）消除工件的內應力，保證了該產品的精度穩定性和耐磨性能。
T型槽平板平臺的精度按國家標準計量檢定規程執行，采用人工刮研的工藝，等級分為：0級、1級、2級、3級和精刨五個級別。
The T-slot platform has stable precision and good wear resistance. It is suitable for various inspection work and reference planes for precision measurement. It is often used for machine tool inspection and measurement standards, checking the dimensional accuracy or shape deviation of parts, and making a close plan. line. T is also an indispensable basic tool in machine building.
The T-shaped groove on the surface of the platform is used to fix the workpiece to be measured and make it accurate.
The material of the T-slot flat platform is generally gray cast iron HT200-300. It can also be made of spheroidal graphite cast iron, cast steel and other materials. The hardness of the working surface of the plate is HB170-240. It adopts traditional annealing aging treatment (600 degrees-650 degrees, constant temperature 4). -6 hours) Eliminate the internal stress of the workpiece, ensuring the precision stability and wear resistance of the product.
The accuracy of the T-slot flat platform is carried out according to the national standard metrological verification rules. The manual scraping process is adopted. The grades are divided into five levels: 0, 1, 2, 3 and 5.
