T型槽方箱的檢定方法及注意事項
時間：2015/12/28 8:51:28
瀏覽量：414

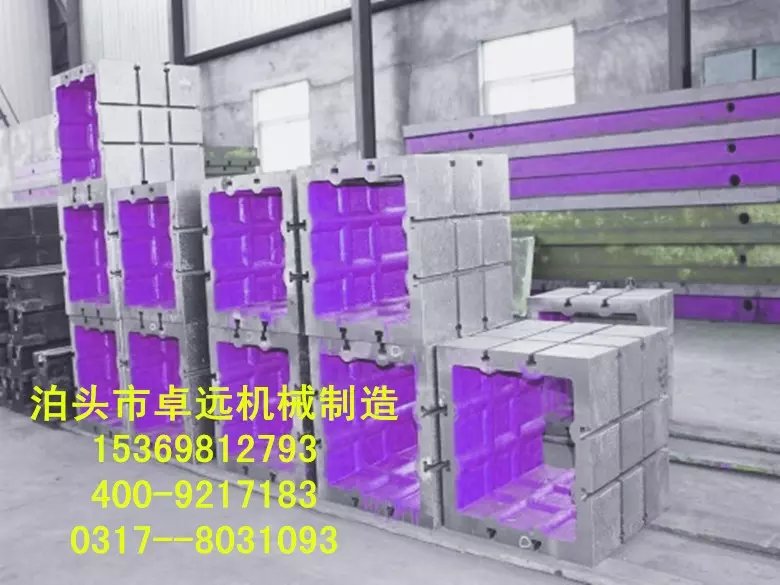

T型槽方箱的材質：采用優質灰鑄鐵HT200-250，按JB/T3411.56-99標準制造。鑄鐵檢驗方箱經過兩次人工退火處理，完全去除內應力，鑄件結構穩定，不易變形。
T型槽方箱的檢定方法
檢定時在方箱被檢面的兩端各放置1mm的量塊，把刀口形直尺放在量塊工作面上，然后在其各被檢點處用量塊試塞，當量塊組剛剛塞入時的尺寸與兩端量塊尺寸之差為該被檢點對兩端之間的偏差。這一檢定還應在方箱工作面的縱向、橫向和對角線方向的幾個截面上進行。
T型槽方箱的使用注意事項
主要用于零部件的平行度、垂直度等的檢驗和劃線。方箱是用鑄鐵或鋼材制成的具體6個工作面的空腔正方體，其中一個工作面上有V型槽。鑄鐵方箱要求：方箱各工作面不能有銹跡、劃痕、裂紋、凹陷以及影響計量性能的其他缺陷。非工作面應清砂涂漆，棱邊倒角。在測得的各個位置的直線中誤差方向一致時取其最大值，當誤差方向不一致時取其最大正差與最大負差絕對值之和，為該受檢面平面的平面度。在方箱內壁應有標牌，并標有規格尺寸，級別出廠編號、制造廠名稱。作為工業生產車間里鉗工做立體劃線的工具；也可以檢測機械零件的平行度和垂直度；也可做工作臺使用。上面帶有支架，用于檢驗或劃精密工件的任意角度線。適用于測量和刻標記的固定器。
T型槽方箱使用，加工和訂做就找泊頭市卓遠機械設備制造有限公司的好！
T型槽方箱，鑄鐵平板，平臺訂做生產銷售咨詢
公司名稱：泊頭市卓遠機械設備制造有限公司
注冊地址：河北省泊頭市交河開發區
傳真號碼：0317-8031093
聯系方式：(河北)15369812793 褚連勝
Material of T-slot square box: It is made of high quality gray cast iron HT200-250 and manufactured according to JB/T3411.56-99 standard. The cast iron inspection square box is subjected to two artificial annealing treatments to completely remove the internal stress, and the casting structure is stable and not easily deformed.
T-slot square box verification method
At the time of inspection, a 1 mm gauge block is placed at both ends of the square surface of the square box, and the knife-shaped ruler is placed on the working surface of the gauge block, and then the block is tested at the respective inspection points, and the equivalent block group is just inserted. The difference between the size of the size and the size of the two ends of the block is the deviation between the two ends of the pair to be inspected. This test shall also be carried out on several sections in the longitudinal, transverse and diagonal directions of the square face.
Precautions for the use of T-slot square box
It is mainly used for inspection and scribing of parallelism and perpendicularity of components. The square box is a cavity cube of a specific six working faces made of cast iron or steel, and one of the working faces has a V-shaped groove. Cast iron square box requirements: There should be no rust, scratches, cracks, dents and other defects affecting the metering performance of each working surface of the square box. The non-working surface should be sand-painted and chamfered. When the error directions in the straight lines of the measured positions are the same, the maximum value is taken. When the error directions are inconsistent, the sum of the maximum positive difference and the absolute value of the maximum negative difference is taken as the flatness of the plane of the examined surface. There should be signs on the inner wall of the square box, and marked with the size, grade number and manufacturer name. As a tool for the three-dimensional scribing of the fitter in the industrial production workshop; it can also detect the parallelism and verticality of the mechanical parts; it can also be used as a workbench. With a bracket on it, it can be used to inspect or draw any angle line of precision workpiece. Suitable for measuring and engraving the holder.
